Kverneland iXtra
The iXtra front tank offers a volume of 1100 litres. In combination with the iXter B mounted sprayer, the iXtra front tank provides a total volume of around 3000 litres.
So Much More Than Just Extra Volume
The innovative Kverneland iXtra front tank offers much more than just extra tank volume. Combined with the iXter B mounted sprayer, the iXtra provides a total volume of around 3000 litres, making the iXter-iXtra combination a serious alternative to a self propelled sprayer. With tractors able to carry much higher loads on their rear linkages, the need for ballast weight on the front of the tractor is essential. With a nominal volume of more than 1100 litres, the Kverneland iXtra front tank is that front end weight adding stability to your tractor, but only when needed!
The Advantages:
- Flexibility while spraying - dual tank strategy
- Fully integrated concept - extremely crop friendly design
- Easy operation
- ISOBUS or non ISOBUS compatible regulations systems
- Possible in combination with IsoMatch GEOCONTROL
Technical Specifications
| iXtra | 1100 Comfort | 1100 Pro |
| Nominal tank capacity | 1100 (l) | 1100 (l) |
| Maximum tank capacity | 1300 (l) | 1300 (l) |
| Clean water tank capacity | 2 x 65 (l) | 2 x 65 (l) |
| Electrical pump capacity | 25 (l/min) | 25 (l/min) |
| Empty weight | 221 | 223 |
| Front linkage | Cat II | Cat II |
| Level indicator | Mechanical | Electrical |
| Control panel | Manual | Electrical (ISOBUS) |
| Regulation systems | FMC /IsoMatch Tellus/ IsoMatch Tellus GO | FMC /IsoMatch Tellus/ IsoMatch Tellus GO |
| iXclean | iXclean Comfort | iXclean Comfort / iXclean Pro |

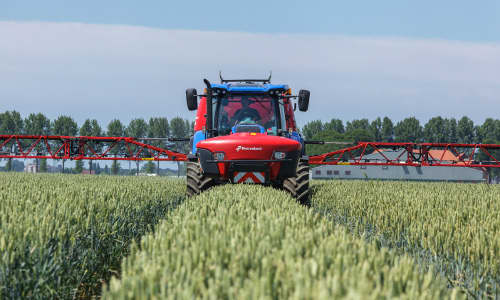

Multi-tank-management
The Multi-tank-managment strategy with independent filling offers you the possibility to work with two separate spray tanks or cleverly, as one large sprayer with automatic balancing of tank contents. If needed, spray liquid can be transferred in both directions.
The iXtra concept with combined functions gives you more flexibility while spraying:
- One-tank approach: both tanks are filled with spray liquid it boosts overall tank capacity by 60% (automatic level system)
- Two-tank approach: filled with two different tank mixes, the front and rear tanks can be used as two independent spray tanks
- Reservoir approach: filled with clean water or a concentrated product the iXtra front tank can be used as a reservoir for later use, for example in another field or crop.
Fully Integrated Design
Fully Integrated Design
The iXtra offers you a completely integrated concept. The two clean water tanks with level indicators are part of the design, as well as the quick hitch system and control panel.
Easy Set Control Panel
The valve panel on the front tank is used for draining, agitation and cleaning. An electric pump guarantees mixing and cleaning, independently from the rear sprayer. You can select the front tank from the cab or throught the Easy Set valve panel on the iXter B sprayer.
Easy to Fit, Simple to Unhitch
Without a front PTO shaft or hydraulic hoses, hitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electrical cable - it really is that simple!
Easy Operation
The iXtra front tank uses the functions of the iXter B sprayer when filling and spraying. This avoids the need - or additional cost - for a separate induction hopper or spray pump for the front tank. All the necessary controls are conveniently located on the sprayer and are operated from the Easy Set valve panel on the iXter B.
iXclean
-
Electrical Level Indicator
The electrical level indicator on the front tank provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel of the iXter B mounted sprayer.
-
iXclean Comfort
iXclean Comfort is a semi automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy: automatic fill stop when the programmed level is reached and remote control of all ENFO rinsing and priming functions out of your tractor cab! Simply prime the spray lines before you start and rinse them afterwards or even during an unexpected weather break, without stepping out of your cab!
-
ENvironmental FOcus (ENFO)
ENFO priming and rinsing is standard on all our spray computers. This smart technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of chemicals and saving water are the benefits for you and your environment.
