Compact designed trailed sprayer. Precise, Easy and Effective, with tank volumes from 2600 up to 4600 litres. Steel and aluminum boom types available from 18 up to 40 metres.
iXtrack T series - made for Farmers, made by Farmers
Kverneland is introducing the iXtrack T series, this new sprayers are precise, easy and effective. The iXtrack T series are developed with focus on a short, low and compact design in combination with intelligent electronics and ease of use. The iXtrack T series offer tank sizes of 2600 up to 4600 litres.
|iXtrack T3||iXtrack T4|
|Tank capacity||2600 - 3200 litres||3400 - 4000 - 4600 litres|
|Spray boom||HSA 18-24m (2-part folded)/ HSS 21-24m (2-part folded)/ HSS 27-30m (3-part folded)||HSS 18-30m (2-part folded)/ HSA 21-33m (2-part folded)/ HSS 27-40m (3-part folded)|
|Drawbar||Top/ Hitch linkage in combination with pulling eye/ball coupling||Top/ Hitch linkage in combination with pulling eye/ball coupling|
|Wheel axle||Adjustable, 1.50 - 2.25m||Adjustable, 1.50 - 2.25m|
|Pumps||Optional, 200 - 400 - 520 l/min.||Optional, 200 - 260 - 400 - 520 l/min.|
|Regulation system||IsoMatch Grip, IsoMatch Tellus GO, IsoMatch Tellus PRO||IsoMatch Grip, IsoMatch Tellus GO, IsoMatch Tellus PRO|
|iXclean||iXclean Comfort/ iXclean Pro||iXclean Comfort/ iXclean Pro|

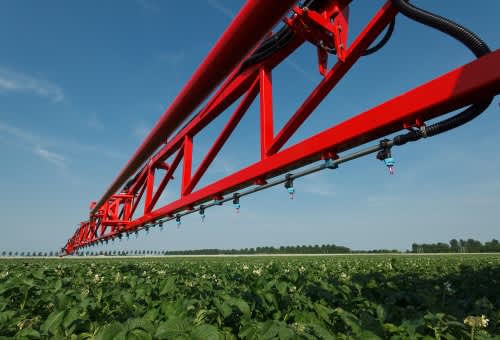

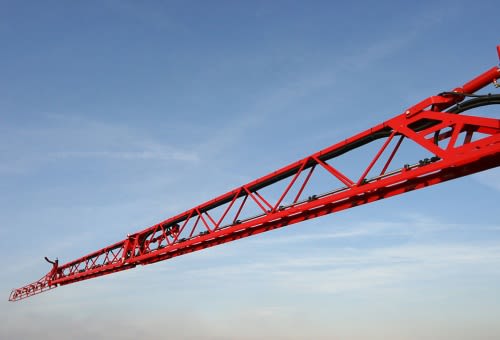

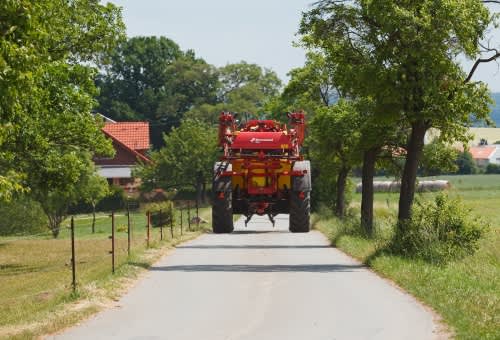

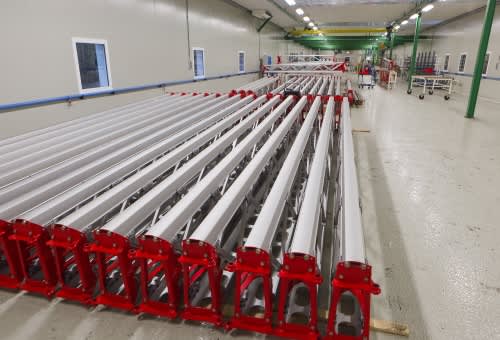

Boom widths are available from 18 up to 40 metres, they fold away compact over the new tank design, keeping the boom away from the tractor cabin and the centre of gravity low during transport. The boom is available in HSA aluminum or HSS steel. The central beam guarantees easy headland turning, higher working speeds, safe transport and easy parking.
|HSS Boom||HSA Boom|
|3-D triangular construction||3-D triangular construction|
|Fully integrated spray lines & nozzle holders||Mono, Tri or Pentajets|
|Mono, Tri or Pentajets||Hydraulic functionality in Hydro Packs|
|Hydraulic functionality in Hydro Packs||Maximum protection of integrated spray lines|
|Independent slope correction optional|
To control boom height and boom suspension the iXtrack T sprayers are equipped with a parallelogram. This ensures boom suspension at all boom heights and it guarantees smooth boom reactions, low maintenance and longer lifetime.
Operating the iXtrack T series with the boom guide provides ultimate guidance in the most challenging field conditions. The ultrasonic sensors can control spray heights, it enables positive and negative lateral movement on the boom to follow the contours in every condition.

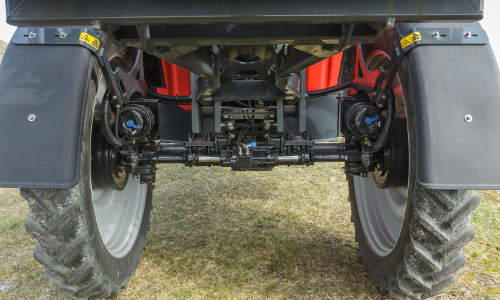

The single central frame, in combination with the special shaped parallelogram arms, create room for high tyres and allow a maximum steering angle. This ensures maximum steering possibilities with a tight turning radius, even on 1.50m track.
Watch the video about the turning radius. Noticeable are the following qualities and benefits:
iXclean prevents that unintended residual enters the environment and ensures a clean working space. The iXtrack T series are equipped with the ENFO spray line filling and cleaning system. The spray line is filled up to the cap and cleaned after spraying for each section. Even the residual liquid in tank and system is diluted and applied to the field. With this, residual liquids are prevented from entering unintended places in the environment.

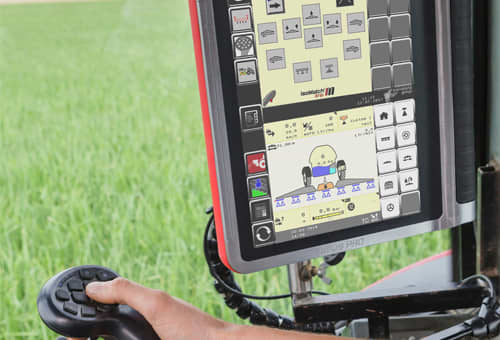

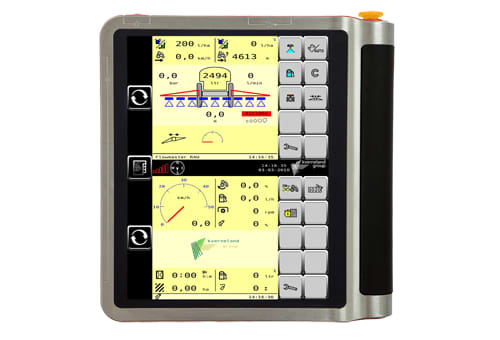

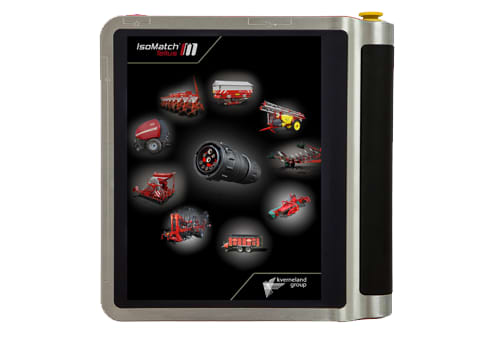

The iXtrack T series are 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO or PRO or any other AEF certified terminal. The new developed iXspray hardware and software with intuitive touch interface guarantee an user friendly operation of the sprayer.
Ergodrive headland management is a standard function on the machine:
